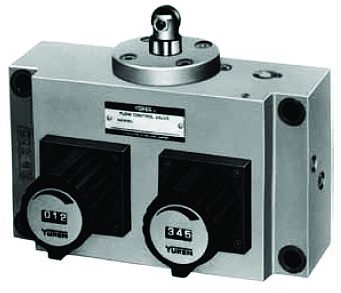

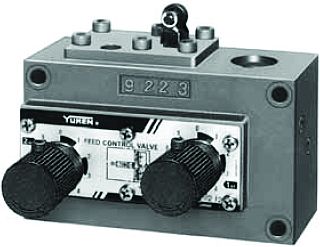

Feed Controls Valves UCF1G/UCF2G

Feed Controls Valves UCF1G/UCF2G are the combination of flow control valve, a deceleration valve and a check valve and used mainly for controlling rapid traverse and feed cycles machine tools. Switching from rapid traverse to feed is made by a cam operation, and fine feed control is accomplished by dial rotation regardless of pressure and oil temperature variation. Rapid return is free of cam actuation.

YUKEN Type Max. flow (L/min) Max. pressure (Bar) Weight (kg)
UCF1G-01 20 140 1,6
UCF1G-03 40 140 2,6
UCF1G-04 80 140 9,2
UCF2G-03 40 140 2,7
UCF2G-04 80 140 9,2



More information in attached catalogue.
