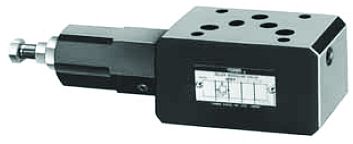

Relief Modular Valves MBP-03, MBA-03, MBB-03, MBW-03

Relief modular valves MBP protect the hydraulic system from excessive pressure and can be used to maintain constant pressure in a hydraulic system.

YUKEN Type Max. flow (L/min) Max.  pressure (Bar) Weight (kg)

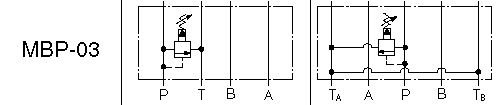

MBP-03 ( v P) 120 350 3,1

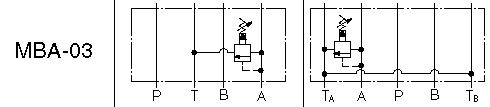

MBA-03 ( v A) 120 350 3,1
MBB-03 ( v B) 120 350 3,1

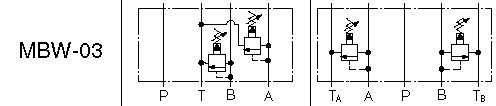

MBW-03 ( v A a B) 120 350 3,8



More information in attached catalogue.
