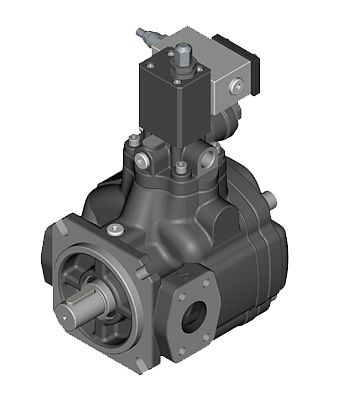

PHPK Series Variable Vane pump Berarma
BERARMA series PHPK pump is quiet, small, high efficiency, longevity and quick response. The pressure and flow of this pump are adjustable and it is suitable for small and light equipment such as machine toll and shoe machine.
- low noise level, compact version - small dimension
- 4-hole flange (UNI ISO 3019/2)
- connections GAS BSP (UNI ISO 228/1) and SAE
- Hydraulic , piloted with horse power limiter device
| BERARMA code | Geometric displacent (cm3/rev.) | Flow ( L/min at 1450rev. ) | Max. pressure (Bar) | Revolutions (rev./ min) |
| 01-PHPK-1-20 | 20 | 29 | 180 | 800 up to 1800 |
| 01-PHPK-1-25 | 25 | 36 | 180 | 800 up to 1800 |
| 01-PHPK-1-32 | 32 | 47 | 180 | 800 up to 1800 |
| 01-PHPK-2-40 | 40 | 58 | 180 | 800 up to 1800 |
| 01-PHPK-2-50 | 50 | 73 | 180 | 800 up to 1800 |
| 01-PHPK-2-63 | 63 | 92 | 180 | 800 up to 1800 |
| 01-PHPK-3-80 | 80 | 116 | 180 | 800 up to 1800 |
| 01-PHPK-3-100 | 100 | 145 | 180 | 800 up to 1800 |
| 01-PHPK-3-120 | 120 | 174 | 180 | 800 up to 1800 |
More information in attached catalogue.
